BLACK OUT- ALUMITE COATING
Compatible with many Japanese manual transmissions (with included inserts)
Black, High Type, Shift Knob with Black GReddy Coin.
"High Type" - where the shift knob sits higher up above the shifter threads (standard type shift lever, without reverse lock-out switch)
5-speed MT cars and 6-speed MT cars where reverse unlocking is not related to knob shape
Shift lever screw size 3 types [M10 x P1.25] [M10 x P1.5] [M12 x P1.25] adapter screws are included. ()
Example of conformity
● All 5-speed transmission vehicle
● 6-speed like:
[Toyota SXE10, Nissan S15, Z33, Z34, Mazda NB8, NCEC, ND5RC, SE3P, Honda AP1, AP2, FK, Mitsubishi CT9A, CZ4A (SST, etc.)]
A02 General purpose "Low Type" - p/n 14500582 - Black-Out
Black, Low (rev. lock-out) Type, Shift Knob with Black GReddy Coin.

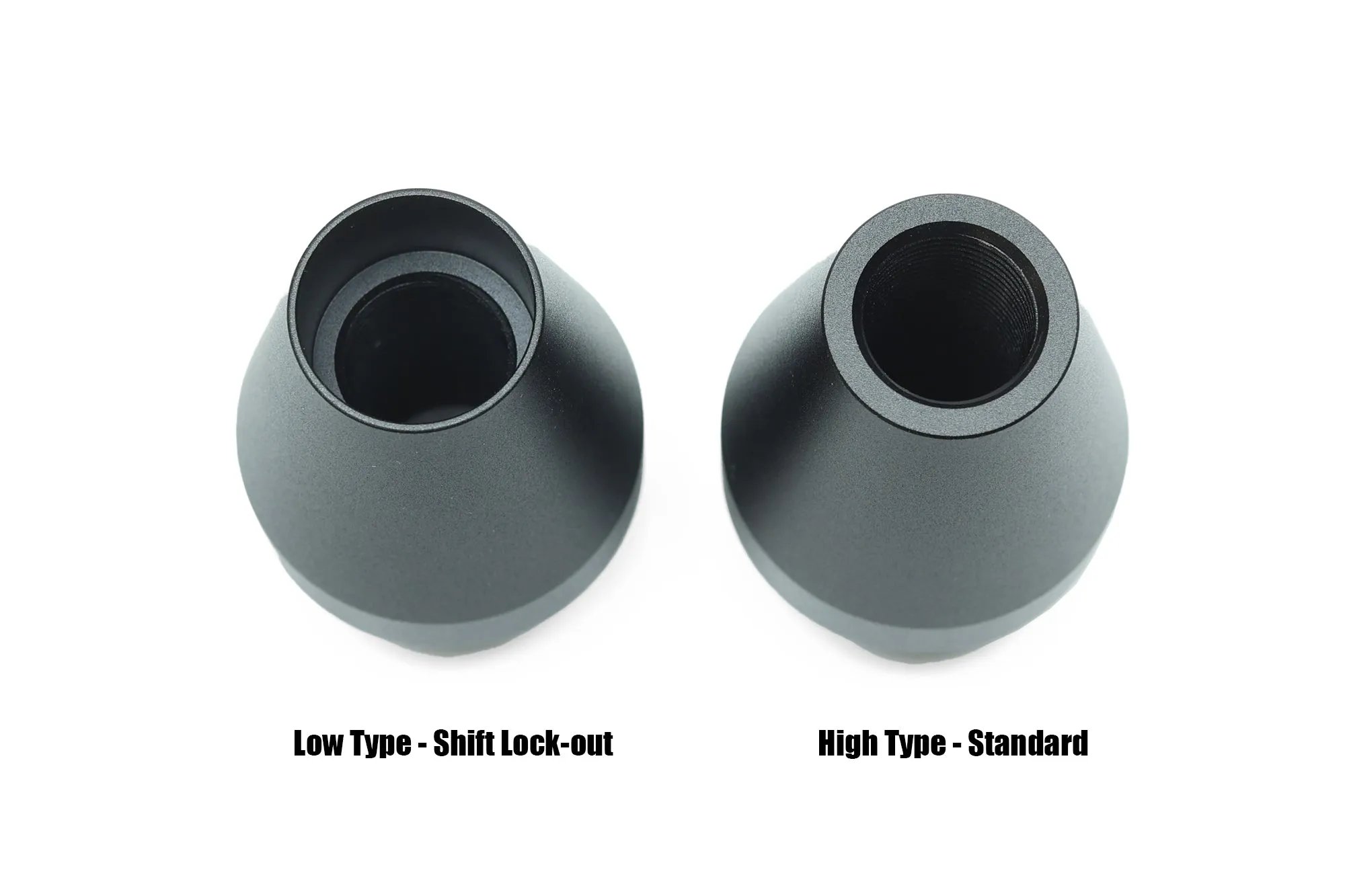

"Low Type" - where the threads start higher up on the knob, so the shift knob sits lower on the shifter (ideal for many shifter with a reverse lock-out switch)
General-purpose 6-speed MT car with reverse lock lever entering the knob
The outer diameter of the part where the lock lever enters the knob can be up to 22 mm.
Example of applications:
[Toyota JZA80, ZN6 FRS/BRZ/86, Nissan BNR34, Subaru WRX/STI GDB, GRB, VAB, ZC6, etc.]

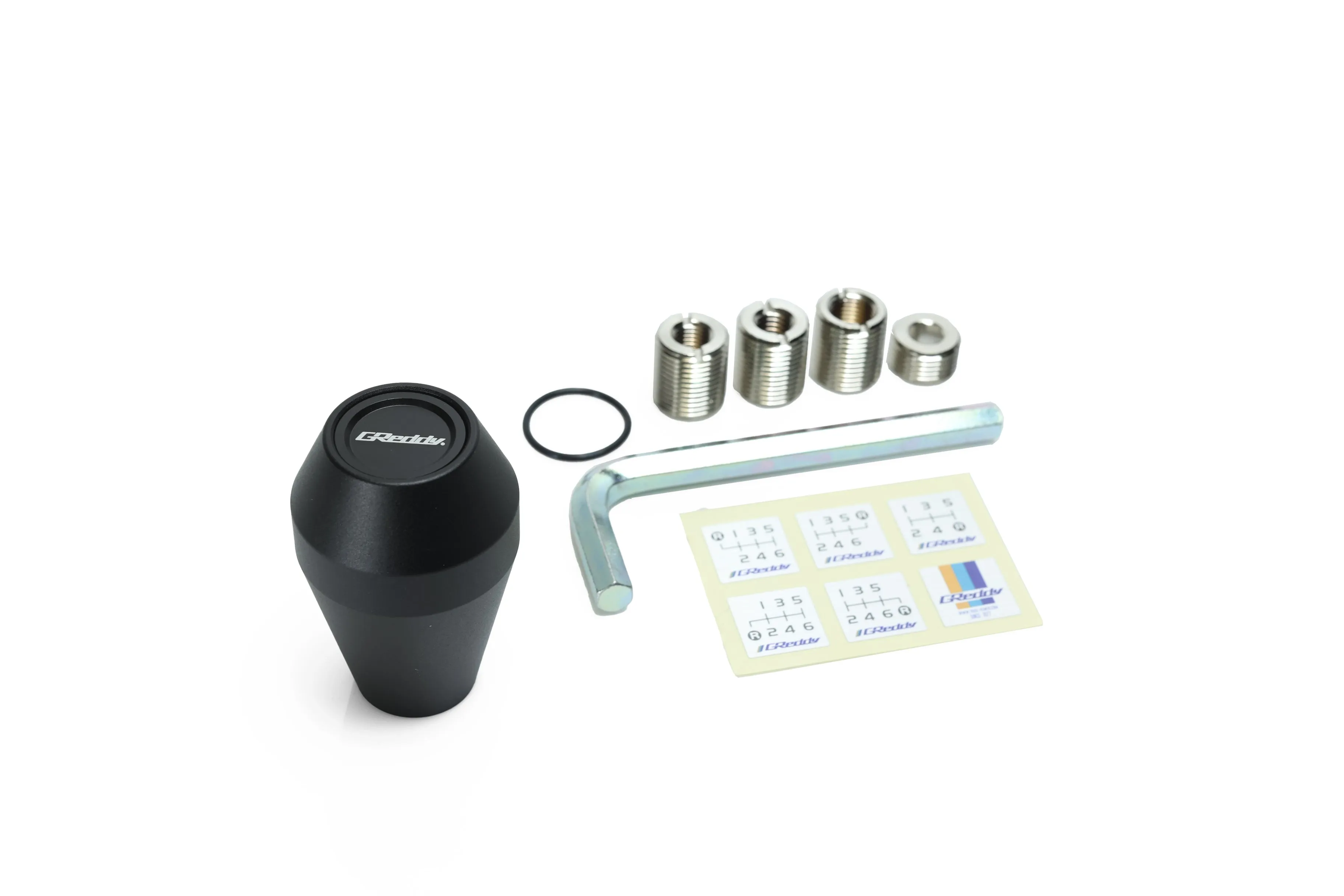

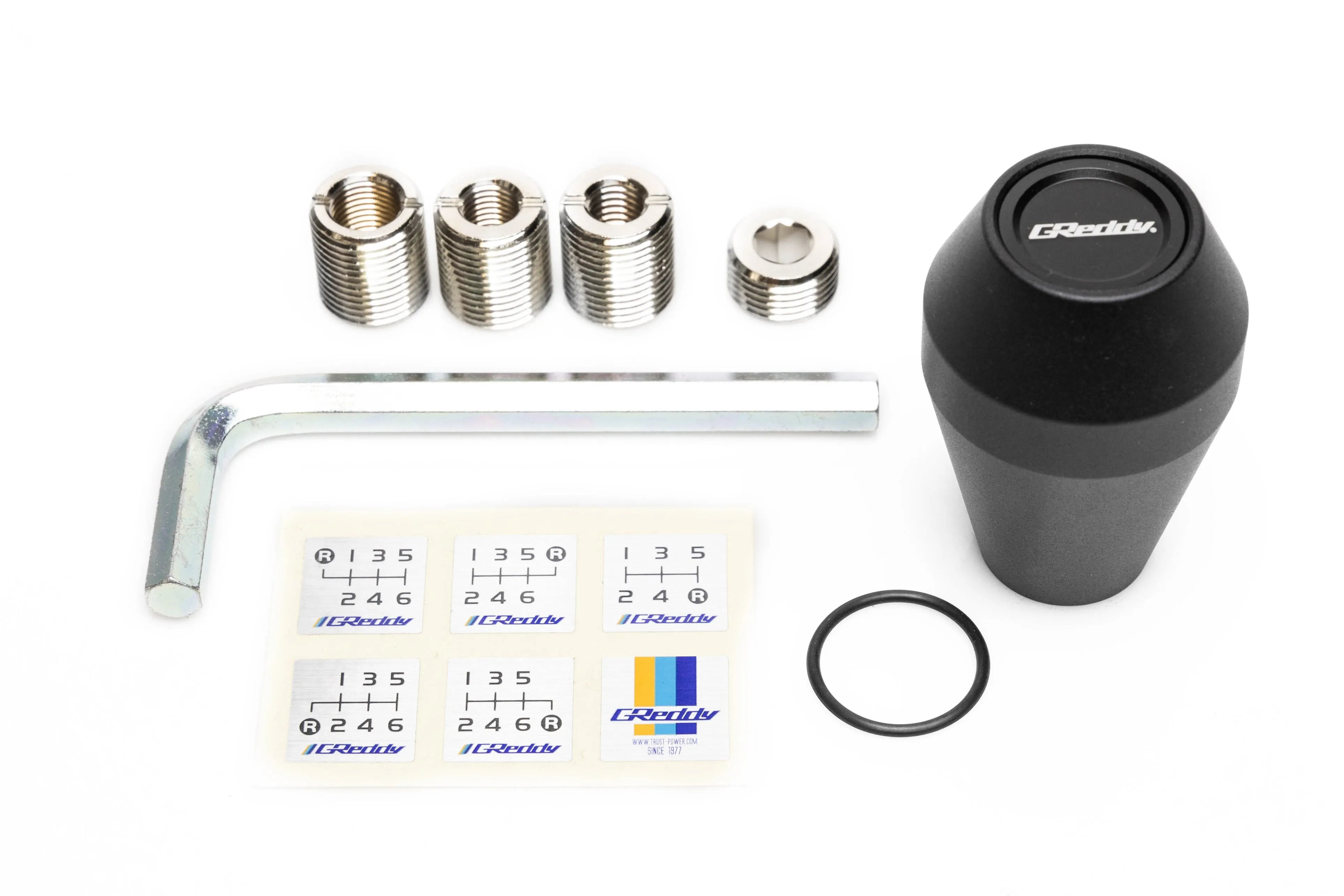

GReddy Traditional Diamond Shape Shift Knob - Black Out
- Black Alumite Shift Knob Finish

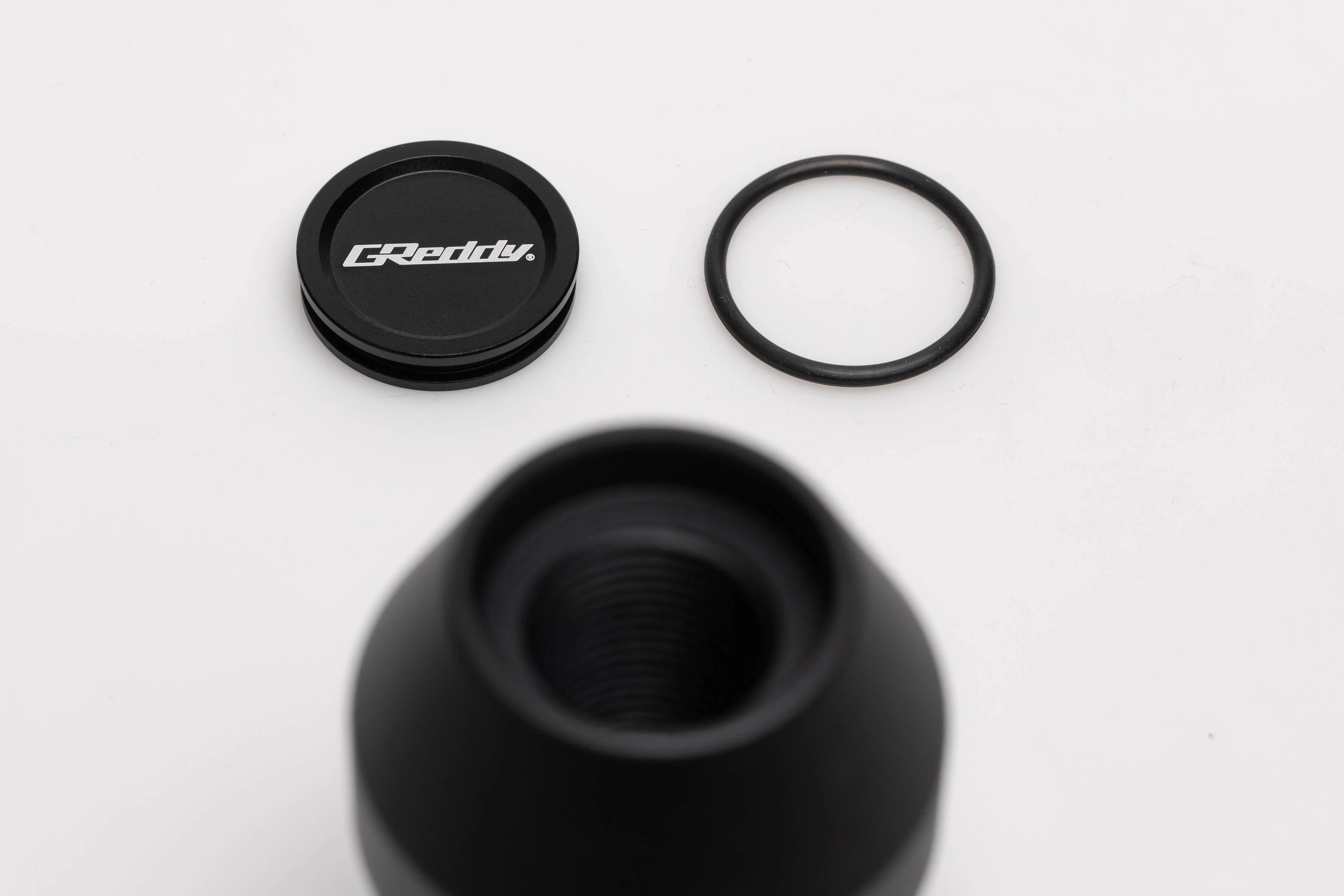

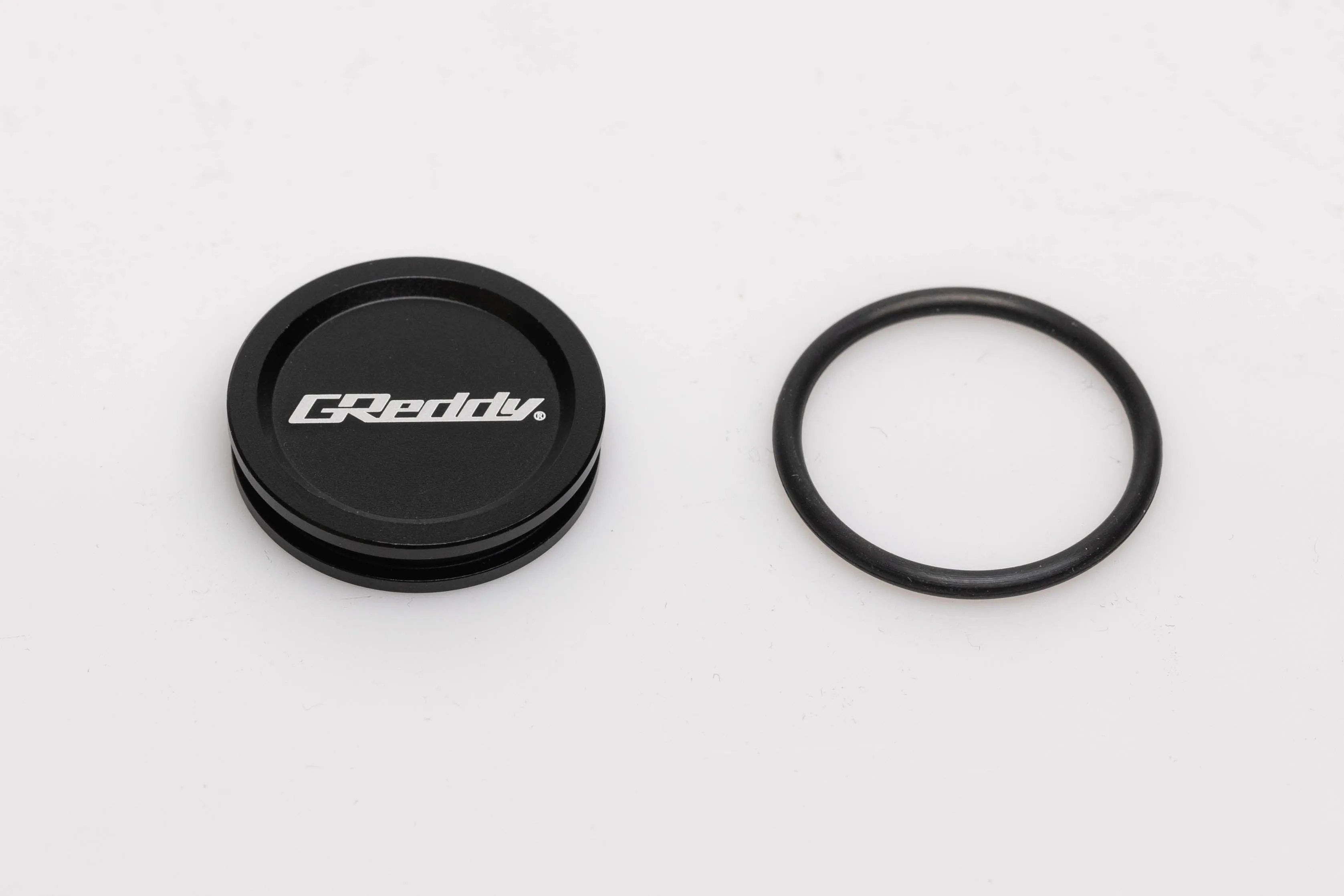

- Anodized Black GReddy badge with o-ring
- Supports 3 types of genuine shift lever screw sizes (M10P1.25, M10P1.5, M12P1.25).
- The mounting height can be adjusted.

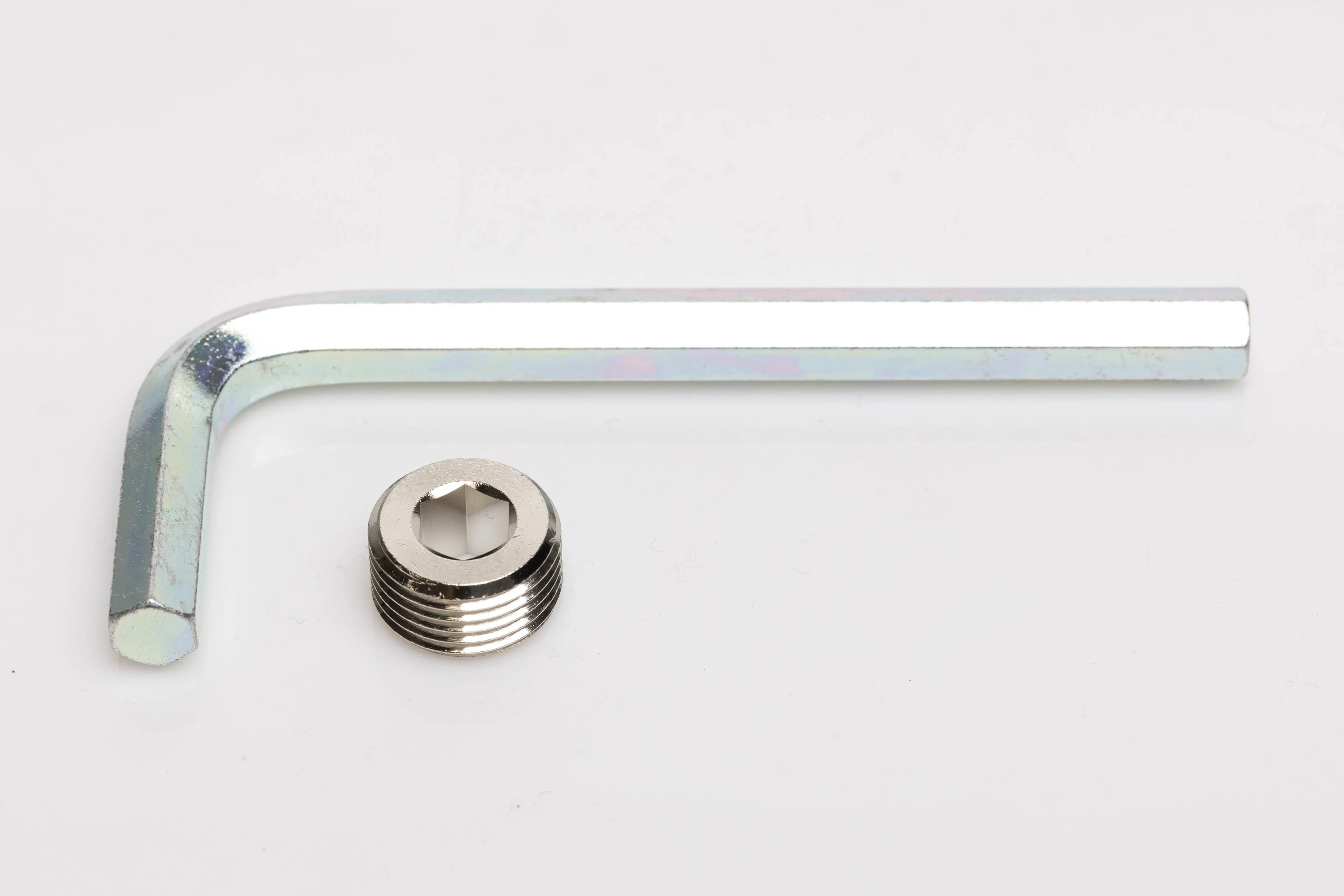

(with included jam nut and 8mm allan wrench)
(Adjustable range: Type A01 approx. 30 mm / Type A02 approx. 15 mm,)
- Highly rigid mounting with a metal adapter.

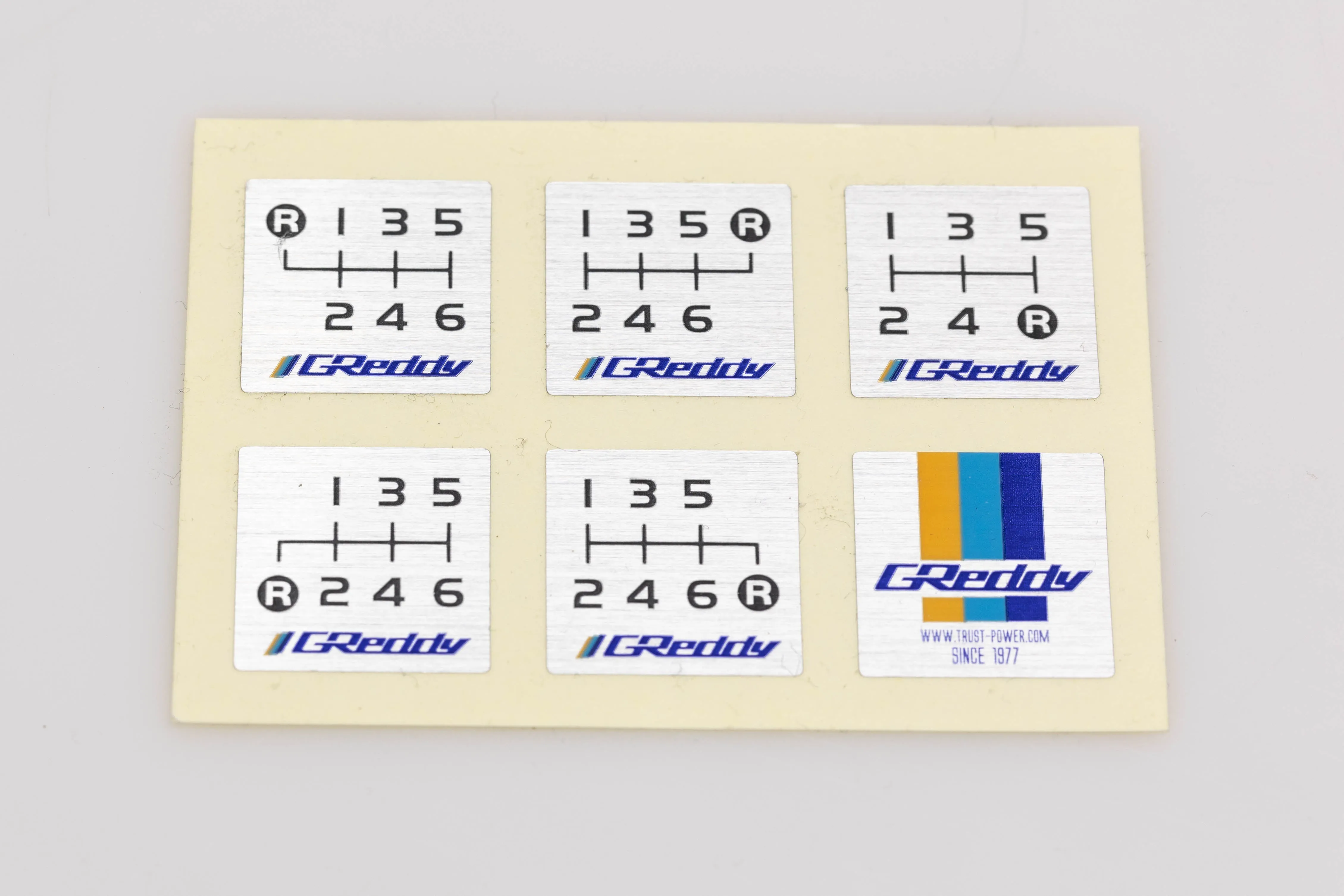

- Five types of shift pattern decals included.
Originally designed for TRUST/GREX sequential transmissions in the 1990s. You can now feel the comfort and precision of our retro billet, CNC shift knobs. The new inner-screw inserts make installation height adjustable, simple and secure. The traditional knobs offer excellent comfort for both side and overhand grips.

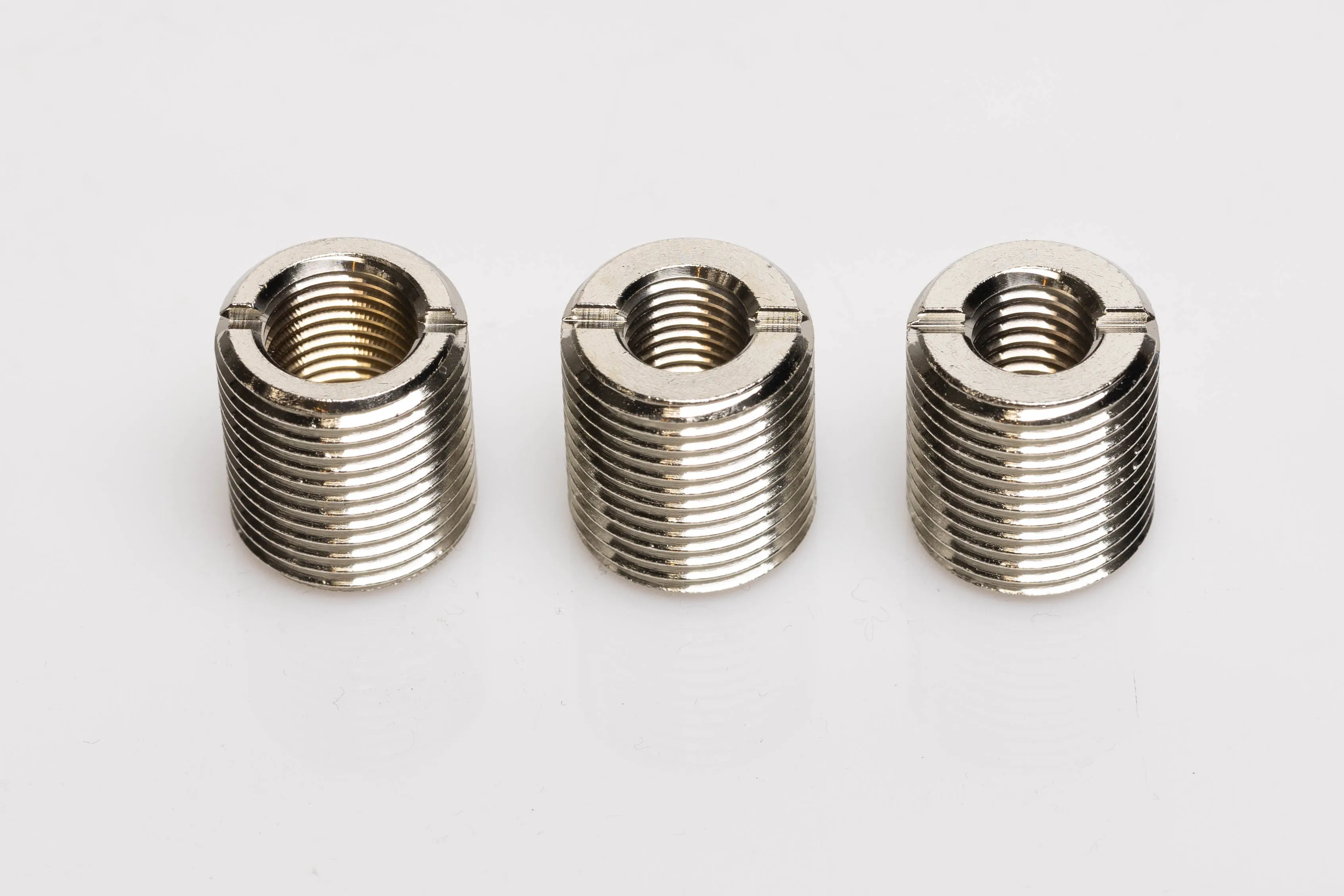

3 Included Threaded Adapters :
M10 x P1.25 - most Nis, Inf, Mit, & Maz
M10 x P1.5 - most Hon & Acu
M12 x P1.25 - most Toy, Lex, Sci, & Sub
()
Each GReddy CNC Stainless Shift Knob includes 3 of the most common thread sizes inserts to suit most Japanese manual transmission shifters. Compatible with 5 and 6 speeds with various gate patterns.
__ _ __ _ __
Optional GReddy Shift Knob Cover for Type A Knobs - sold separately
p/n
- GReddy shift knob Silicon cover for TYPE A Shift Knobs.
- Recommended for measures against heat, scratches, and makeovers.
- Carbon black design.
